Name: 47W Power FTTH Mini Node WDM And AGC For CATV Multiple Circuit Protection
Brand: JiZhong
Price: 1 USD

Brand Name : JiZhong

Model Number : JZORH1000

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 5 work days

Packaging Details : Standard Export package

Frequency : 47~1000MHz

Flatness : +-1dB

Reflection loss : 14dB

Output level : 75dBuV

Power adapter : 4.7W

Dimension : 100x105x27mm

Contact Now

FTTH Mini Optical Receiver Optical Node WDM And AGC For CATV

JZORH1000

Characteristics:

■ LED display input optical power working status.

■ 5~1000MHz optimized circuit design.

■ High responsibility PIN optical to electronic, high reliability.

■ Built-in WDM, with data transmission.

■ Advanced optical AGC and ATT control function, broadband working range.

■ Advanced power supply conversion,1.5W, advanced linear output.

■ Multiple circuit protection, making it more safe,reliable.

Technical parameters:

Items	Unit	Parameters	Remark
Optical parameters
Input wavelength	nm	1290~1600
Output wavelength	nm	1310/1490
Input/Output isolation	dB	>20	@1550nm
Input/Output insertion loss	dB	≤1.5	@1310nm/1490nm
Optical return loss	dB	>45
Nominal input optical power	dBm	+2~-13
Optical AGC range	dBm	+2~-8
Optical connector mode		SC/APC
RF parameters
RF working bandwidth	MHz	45~1000
Equivalent input noise current	PA/	≤8
RF in band flatness	dB	±1.0
Output return loss	dB	≥14
RF attenuation	dB	10	2 dB/each
Link C/N	dB	>47.5	OMI=3.5%,60 way PAL-D mode Anolog TV ch annel,test when input optical power -6dBm.
Link C/CSO	dB	>65
Link C/CTB	dB	>60
Classical output level	dBμV	78
RF output port		F-type standard interface
hardware parameters
Power supply indicator		Red
Optical power indicator		Green(-8~+2) red＜-8
Power supply	V	90~264	AC
Power supply	V	5	DC
The whole machine parameters:
Working temperature	℃	0~+40
Storage temperature	℃	-45~+70
Humidity	%	Max 95 ,Non-condensing
MTBF	h	80000
Power consumption	W	1.5	Including power adapter
Dimension	mm	100×88.5×26.5	Non-including input,output port.

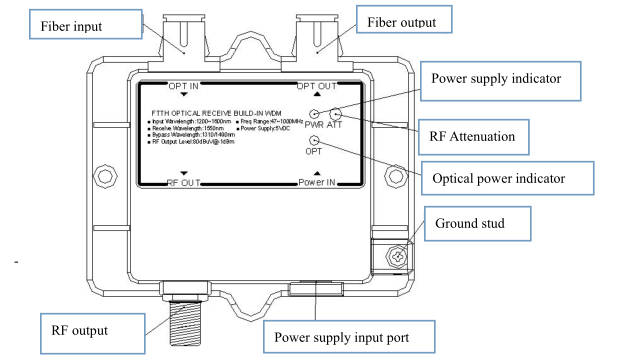

Structure instructions:

4.7W Power FTTH Mini Node WDM And AGC For CATV Multiple Circuit Protection
