Mini Single Port 1 GE Wifi EPON ONU Equal Huawei HG8130M English Firmware

Product Categories

SHAANXI JIZHONG ELECTRONICS SCIEN-TECH CO.,LTD.

Contact Now

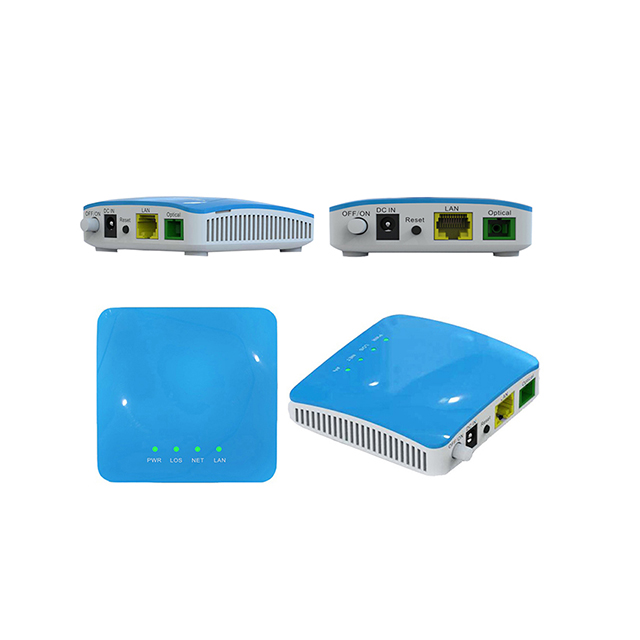

Name: Mini Single Port 1 GE Wifi EPON ONU Equal Huawei HG8130M English Firmware
Brand: JIZHONG
Price: 1 USD

Brand Name : JIZHONG

Model Number : JZOE-1120

Certification : ISO9001,CE,RoHs,WIFI

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100000Pcs/M

Packaging Details : 10PCS/CTN,CTN SIZE:42*37*27CM

ONU Type : MINI Single Port 1 GE EPON FTTH ONU

Chipset : Realtek

Mechanical : Plastic

Indicator : PWR,LOS,NET,LAN

Firmware Language : English

Size : 85*85*18mm

Weight : <1kg

Contact Now

Low Cost English Firmware MINI Single Port 1 GE EPON FTTH ONU Equal Huawei HG8130M

Features

SerDes and DCR, support adaptive EPON/GPON
Internal 500MHz high performance ARM(32KBI/32JB D L1Cache) processor
Support EPON/GPON protocol and function applications; GPON compliant with ITU-T G.984.1/2/2/4; package meeting G.984 Ethernet over GEM; downstream speed- 2.488Gbit/s white upstream speed-1.244Gbit/s; EPON meeting 802.3-2005 and CTC EPON requirement with parallel upstream and downstream rate of 1.25Gbit/s

Mini Single Port 1 GE Wifi EPON ONU Equal Huawei HG8130M English Firmware

Technical Specification

ONU Type	Low Cost English Firmware MINI Single Port 1 GE EPON FTTH ONU Equal Huawei HG8130M
Connector type	SC/APC
PON No.	1
Fiber mode	Single fiber
Wavelength	Transmitting port:1310 +/-20nm, Receiving port:1490 +/-10nm
Portocol	GPON: ITU-T G.984.1/2/3/4; EPON: 802.3-2005 and CTC EPON
Speed	GPON: download 2.488Gbit/s, upload 1.244Gbit/s;
Speed	EPON: symmetric 1Gbit/s
Output optical power	Min. 0dBm; max. +4dBm
Receiver sensitivity	max -27dBm
Receiver optical power	Min. -3dBm
Damaged threshold value	7dBm
Optical link length	Max. 20km
Power supply(DC)	DC 12V 0.8A
Power loss	≤1.5W
Working tempreturer	-10 ~ +45℃
Storage tempreture	-40 ~ +75℃
Ralative humantity	max.95%%

PACKING

Mini Single Port 1 GE Wifi EPON ONU Equal Huawei HG8130M English Firmware
