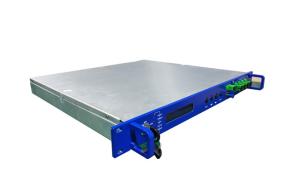

High Performance Fiber Optic EDFA Optical Amplifier 16 Port JDSU For FTTH Network

FTTH 1550nm Fiber Optic Amplifier High Power EDFA 16 port JDSU for FTTH Network

Summary

JZEDFA CATV analog optical fiber amplifier executive standard: GY/T184-2002 "Specifications and methods of measurements on analog fiber amplifiers used in CATV system”It adopt multiple mode high power pump laser from world famous semiconductor company like JDS,Lumics etc.Built in optical power output stable circuit and laser thermoelectric refrigerator temperature stability control circuit, which ensure the best performance of the machine and long service life of laser. The working parameters will be displayed by digital panel (LCD).Once the working parameters of laser deviation software Settings allow range, the microprocessor will automatically shut off the laser power, red light flashing reminder alarm, digital panel indicate the cause of the problem.Equipment parameters of the detailed report, please read the "operation instructions".

Advantages

• With RF on-line test
• With pluggable powers,one key push-pull design,easy operation.
• With original new lumentum laser
• With intelligent cooling system,3 fans which could turn on/off by front panel.
• Above 96% conversion efficiency,low power consumption.

Technical Specification

EDFA Type	8 PORT 19dBm FTTX GPON CATV High Power EDFA with WDM For PON Network
Item	Unit	Parameters
Wavelength	nm	1530~1565
Input optical power	dBm	-10~+10
Nominal input optical power	dBm	3
NRP (+3 dBm,@1550nM)	dB	≤4.5
Gain Flatness	dB	＜±0.3
Optical power output stability	dB	＜±0.1
Polarization sensitivity	dB	＜0.2
Polarization mode dispersion	PS	＜0.5
C/N	dB	>52
C/CTB	dB	>65
C/CSO	dB	>65
MER	dB	>36
BER(before decode)	dB	≤1.0E-8
Optical connector		SC/APC；SC/PC (LC/APC；LC/PC)
Pump working qty	N	1∽5
Saturated output power	dBm	Max total power 30~41
Power supply	Vac	95~265(detachable power)
Power Supply	Vac	-48(detachable power)optional
Working Temperature	℃	0~50
PON path with WDM
PON working wavelength	nm	1310/1490
PON port Insert Loss	dB	＜1
155 port insert loss	dB	＜0.5
Option
Front panel RF-TEST LEVEL	dBuV	75±5
Optical switch switch time	ms	＜10
Power consumption	W	≤50
Principle Block Diagram
WDM Diagram
Front and Rear Panel
Accessories
Power Line	2*1M
User Manual	1*Single sheet user manual
